The KOG genome analysis system complies with the following security guidelines and can be used as a server outside NBDC institution, a third-case computer.

NBDC Human Data Handling Security Guidelines and NBDC Human Data Group Shared Data Handling Security Guidelines Checklist

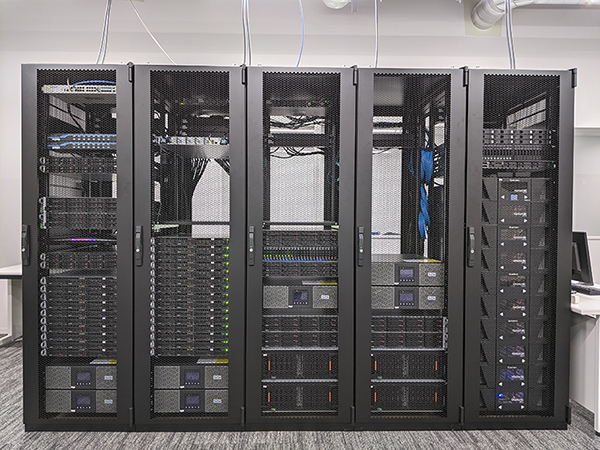

It consists of three main components: computer, high-speed storage, and archive storage. Specifications are as follows:

1. Computation node: Approximately 2000 cores in total

	nodes	OS	CPU	CPU cores (per node)	Memory (per node)
Computation node	25	CentOS 8	AMD EPYC 7742(2.25GHz) x1	64	512GB
Computation node (Large memory)	2	CentOS 8	AMD EPYC 7742(2.25GHz) x2	128	4096GB

2. Shared storage (home directory)

	Total
Lustre	2.3PB

3. Tape archive

	Tape Drive	Capacity
Quantum Scalar i6 LTO8 Tape Library	2	6PB

4. Network

	Name
Computational network	100Gbps EDR InfiniBand
Management network	10Gbps Ethernet

5. Job Scheduler (Univa Grid Engine)

Queue name	Number of slots (Queue)	Number of slots (per node)	Memory (Queue)	Memory (per node)	Maximum execution time
lmem.q(Large memory job)	256 slot	128 slot	8 TB	4 TB	31 days
node.q(Normal job)	1200 slot	64 slot	10.2 TB	512 GB	31 days
qlogin.q(Dialogue job)	128 slot	64 slot	1 TB	512 GB	Unlimited (Automatic logout in 6hours without operation)
